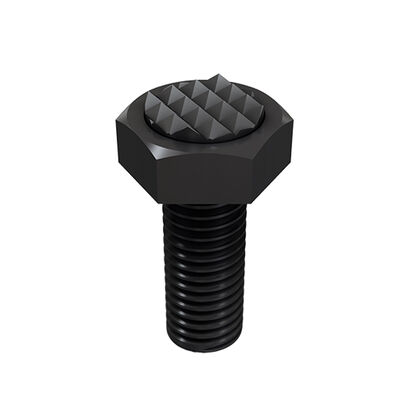

Gripper Hex Head Screw Serrated Surfaces High Hardness Clamping Fixture Parts

Basic Information

Place of Origin:	Chongqing, China
Brand Name:	ADJIG
Model Number:	PT19-061025
Document:	Screw Support-PT19.pdf

Minimum Order Quantity:	5
Price:	7-8.5 USD per Item
Packaging Details:	Carton/wooden crate
Delivery Time:	7-10 days
Payment Terms:	L/C,T/T
Supply Ability:	Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 15-20 days.

Get Best Price

Chat Now

Detail Information

Weight:

0.008 Kg

Material:

SCM435

Surface Treatment:

HRC32°~38°

Surface Finish:

Black Oxide

Highlight:

Gripper hex head screw

hex head screw High Hardness

SCM435 Fixture Parts

Product Description

Gripper Hexagon Screw Serrated Surfaces High Hardness Clamping Support Fixture Workpiece

Material: SCM435

Heat treated: HRC 32°~38°

Serrated surface to be heat treated with high frequency quenching.

Surface finish︰Black Oxide.

Model No	A	B	C	D	E	F	KG
PT19-061025	25	6	10	7.9	M6	2.3	0.008
PT19-081325	25	7.3	13	9.5	M8	3	0.015
PT19-101725	25	8.4	17	13	M10	3	0.03
PT19-101740	40	8.4	17	13	M10	3	0.035
PT19-121925	25	9.5	19	16	M12	3	0.035
PT19-121940	40	9.5	19	16	M12	3	0.05
PT19-162435	35	12	24	19	M16	3	0.085
PT19-162450	50	12	24	19	M16	3	0.1
PT19-203040	40	15	30	25	M20	3	0.16
PT19-203060	60	15	30	25	M20	3	0.205
