20KN 40KN lang zero point clamping rigid construction Pneumatic Base Plate

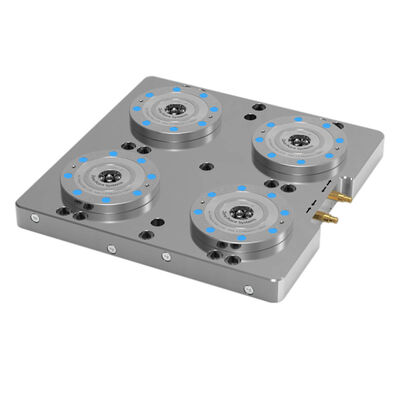

ZPS 4-Module Zero-Point Positioning Pneumatic Base Plate for CNC Fixtures Multi-Workpiece

Product Features:
Pneumatic unlocking, mechanical locking;
1. Material: Mold steel (or customer's choice); surface and piston hardened;
Repeat positioning accuracy <0.005MM:
2. Locked onto T-slot via countersunk holes on base plate for easy installation. at least two locating holes for accurate positioning.

Applicable Industries: Suitable for three-axis, non-rotating machining.

This Multi-Face CNC Fixture Block revolutionizes complex part machining through seamless integration with zero-point positioning systems. Engineered for maximum versatility, it enables complete five-axis access to workpiece multiple surfaces in a single setup. The precision-ground faces maintain exceptional perpendicularity and parallelism, while the integrated zero-point interface ensures quick changeovers with repeatable micron-level accuracy. Its rigid construction guarantees vibration-free stability during aggressive machining operations. Ideal for complex geometries requiring multiple operations, this fixture significantly reduces setup time while maintaining exceptional positioning accuracy across all machining faces, dramatically improving throughput for high-precision manufacturing applications.
