Multi Face Zero Point Clamping System Block CNC Workholding Fixture

Basic Information

Place of Origin:	Chongqing, China
Brand Name:	ADJIG
Model Number:	Q9LZ-10/Q9LZ-20
Document:	Q9LZ-10.pdf

Minimum Order Quantity:	1
Price:	2903 - 24648 USD per item
Packaging Details:	Carton/wooden crate
Delivery Time:	7-10 days
Payment Terms:	L/C,T/T
Supply Ability:	Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.

Get Best Price

Chat Now

Detail Information

Unlock Method:

Pneumatic Pressure

Repeatability:

＜0.005mm

Clamping Force (KN):

(3×)3×10/(3×)3×17

Tensile Force (KN):

(3×)3×25/(3×)3×55

Highlight:

Zero Point Clamping System Block

303KG Zero Point Clamping System

Workholding CNC Fixture Block

Product Description

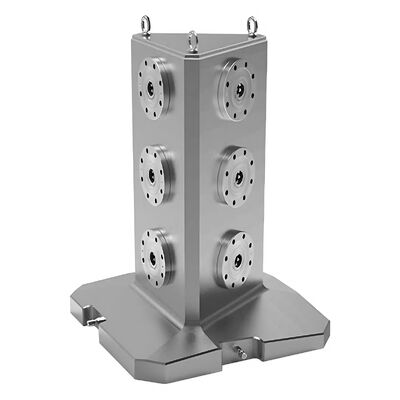

Multi-Face CNC Fixture Block for Zero-Point Positioning Systems CNC Workholding Fixture

Product Features:
Pneumatic unlocking, mechanical locking
Material: HT300
Surface and live pin hardened treatment
Repeat positioning accuracy <0.005MM.
Applicable Industries:
Suitable for metal or non-metal cutting fields
Suitable for horizontal CNC machine tool processing.

Part Number	Size Number	Unlock Method	Clamping Force (KN)	Tensile Force (KN)	Chip Blowing	Weight (kg)
Q9LZ-10	Q10	Pneumatic Pressure	(3×)3×10	(3×)3×25	√	260
Q9LZ-20	Q20	Pneumatic Pressure	(3×)3×17	(3×)3×55	√	303

Part Number	A	B	C	D	E	F	G	H	I	J	K
Q9LZ-10	250	224	550	160	152	15	216	12	550	110	24
Q9LZ-20	313	280	688	200	190	19	271	15	688	138	30

Multi Face Zero Point Clamping System Block CNC Workholding Fixture 0
