High Hardness Serrated Gripper Pad (Round) for CNC Clamping Fixture

Basic Information

Place of Origin:	Chongqing, China
Brand Name:	ADJIG
Model Number:	PT21-1010
Document:	Screw Support-PT21.pdf

Minimum Order Quantity:	5
Price:	7.5-9 USD per item
Packaging Details:	Carton/wooden crate
Delivery Time:	7-10 days
Payment Terms:	L/C,T/T
Supply Ability:	Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 15-20 days.

Get Best Price

Chat Now

Detail Information

Material:	S45C	Color:	Black
Heat Treated:	HRC 33°	Type:	Gripper Screw
Surface Finish:	Blackening Treatment	Warranty:	1 Year
Weight:	0.005 Kg
Highlight:	serrated fixture parts , serrated foot clamping fixture , gripper fixture parts

Product Description

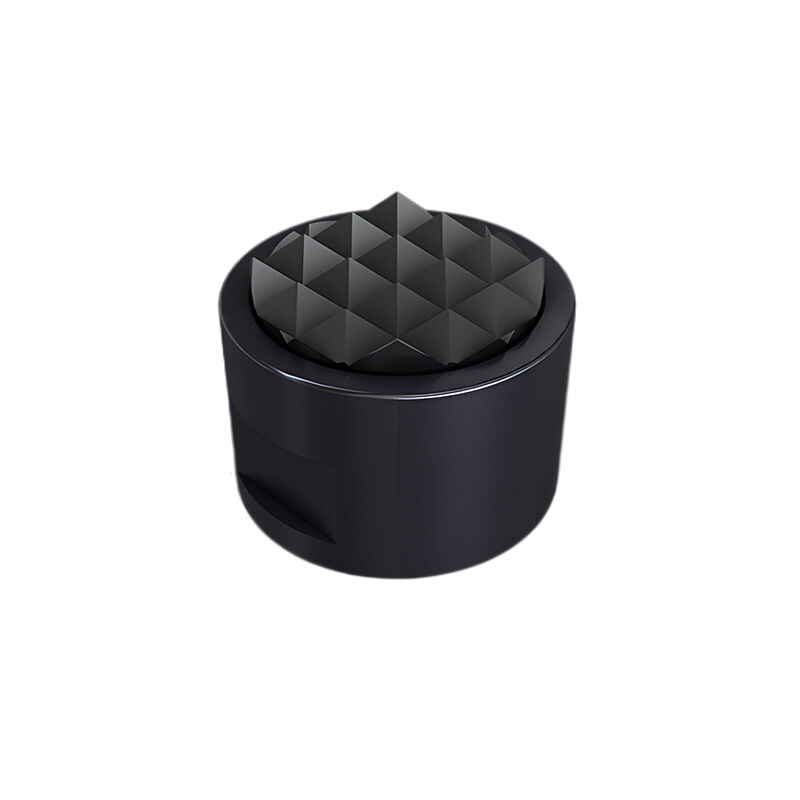

High Hardness Serrated Gripper Pad (Round) for CNC Clamping Fixture

Material: S45C(JIS)

Heat treated: HRC 33°

Surface finish︰Black Oxide.

Application: Multipurpose work support and clamping unit, ideal for rough parts.

Model No	A	B	C	D	E	F	KG
PT21-1010	10	10	3.4	M5	2.3	8.1	0.005
PT21-1212	12	12	4	M6	3	9.6	0.008
PT21-1612	16	12	4	M6	3	13	0.016
PT21-2012	20	12	4	M6	3	16.3	0.025
PT21-2512	25	12	4	M6	3	19.5	0.04
