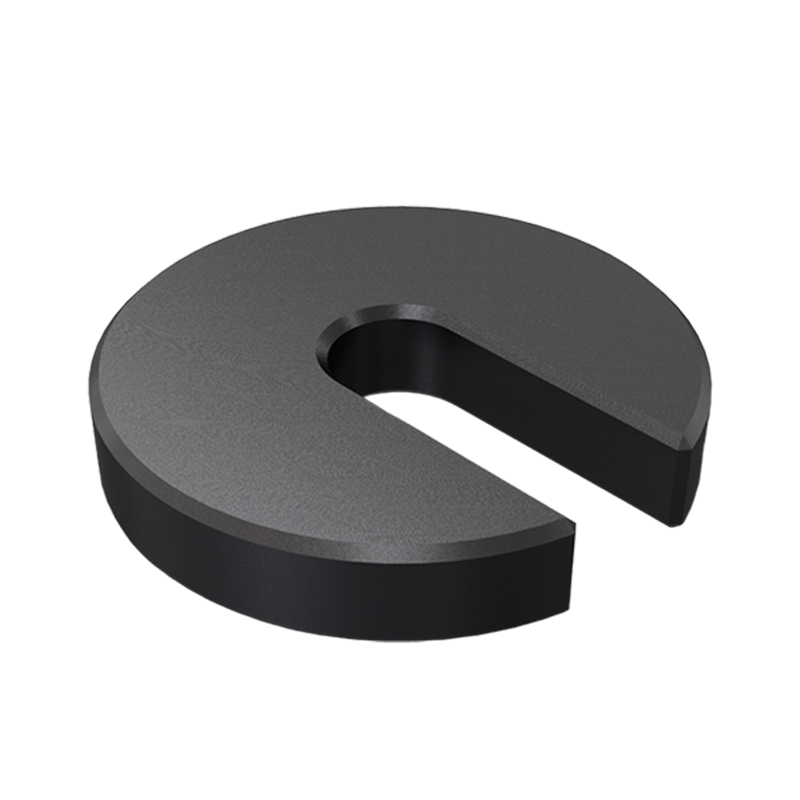

S45C Split Washer For Jigs CNC Clamping Fixture Workholding

S45C Split Washer For Jigs CNC Clamping Fixture Workholding
S45C Split Washer For Jigs CNC Clamping Fixture Workholding
Basic Information
Place of Origin: Chongqing, China
Brand Name: ADJIG
Model Number: PT23-1665
Document: Split Washer for Jigs-PT23.pdf
Minimum Order Quantity: 5
Price: 9 USD per item
Packaging Details: Carton/wooden crate
Delivery Time: 7-10 days
Payment Terms: T/T,L/C
Supply Ability: Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 15-20 days.
Get Best Price
Chat Now
Detail Information
Material: S45C Surface Treatment: Black Oxide Coating
Inner Dia. D (mm): 17 Outer Dia. D (mm): 65
Thickness T (mm): 10 Heat Treatment: HRC40°
Highlight:

s45c fixture parts

,

s45c foot clamping fixture

,

cnc fixture parts

Product Description

Durable Split Washer for Jigs CNC Clamping Fixture Workholding



Material: S45C


Surface Treatment:Black Oxide Coating


Inner Dia. d (mm):9


Outer Dia. D (mm):35


Type:Split Washer for Jig


Thickness t (mm) 8





MODEL NO A B C KG
PT23-0835 9 35 8 0.1
PT23-1040 11 40 8 0.1
PT23-1255 13 55 10 0.2
PT23-1665 17 65 10 0.2
PT23-2080 21 80 10 0.3
PT23-2490 25 90 12 0.5





S45C Split Washer For Jigs CNC Clamping Fixture Workholding 0
