Mounting System Quick Grip Drill Press Vise Locating Sleeve Ball Lock Liners

Basic Information

Place of Origin:	Chongqing, China
Brand Name:	ADJIG
Model Number:	QSP16020
Document:	Ball Lock-QSP.pdf

Minimum Order Quantity:	1
Price:	25 - 32 USD per item
Packaging Details:	Carton/wooden crate
Delivery Time:	7-10 days
Payment Terms:	T/T,L/C
Supply Ability:	Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.

Get Best Price

Chat Now

Detail Information

Material:	High-quality Steel	Installation:	Easy To Install And Use
Maintenance:	Low Maintenance Required	Size:	Customizable
Adjustability:	Easily Adjustable For Different Workpieces	Type:	Fixture
Durability:	Long-lasting	Convenience:	Saves Time And Effort In Changing Workpieces
Usage:	Quickly Change Workpieces In A Production Line	Precision:	Ensures Accurate Positioning Of Workpieces
Efficiency:	Increases Production Speed
Highlight:	Mounting System quick grip drill press vise , adjustable quick grip drill press vise , Locating Sleeve Ball Lock Liners

Product Description

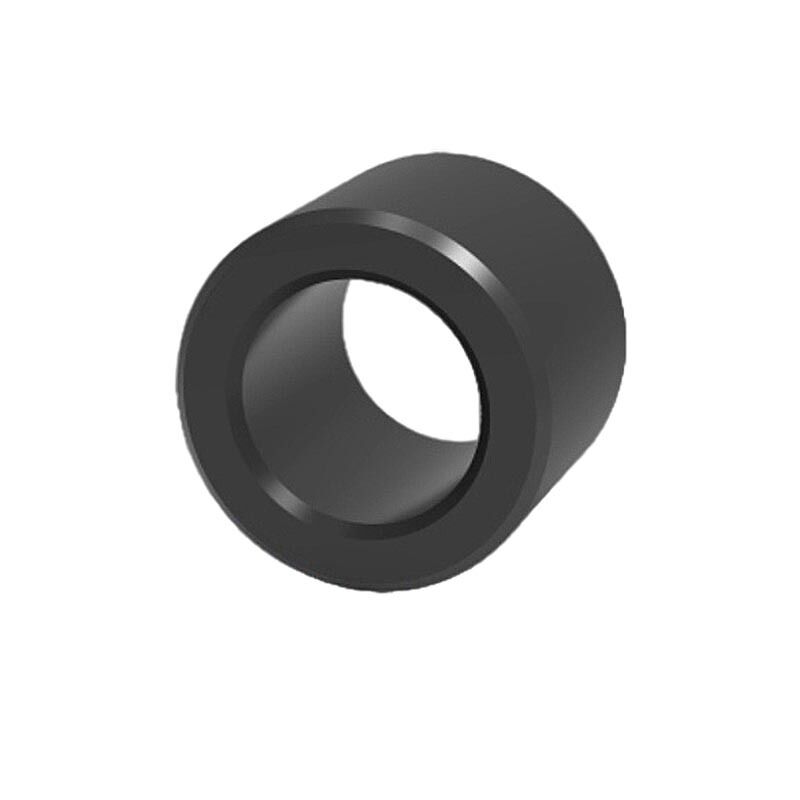

Locating Sleeve High-Precision Ball Lock Liners for Ball Lock Mounting System

Locating repeatability will determine if (1) primary and (1) secondary or (2) primary liners are needed. With (2) primary liners, repeatability of ±0.0005" (±0.003mm) can be maintained if the (2) holes for receiver bushings are held to a centerline distance of ±0.0002" (±0.005mm) tolerance.

Features, Benefits, & Product Specifications:

Material: 52100 Steel
Finish: Black Oxide
Heat Treat: 62-64 RC
Operating Temperature Range: -20°F to 400°F (-30°C to 200°C)

On Installation of Press Fit Liners & Back Mount Style Receiver Bushings:

To alleviate the possibility of binding the shank in the bore, the maximum interference fit between bore and bushing O.D. should not exceed 0.0005" (0.013mm).

PART NUMBER	ΦD1	ΦD2	H	WEIGHT(kg)
DW16201	25.04	16	20	46
DW16251	25.04	16	25	59
DW20201	35.04	20	20	102
DW20251	35.04	20	25	127
DW25201	35.04	25	20	74
DW25251	35.04	25	25	91
DW30201	45.04	30	20	138
DW30251	45.04	30	25	173
