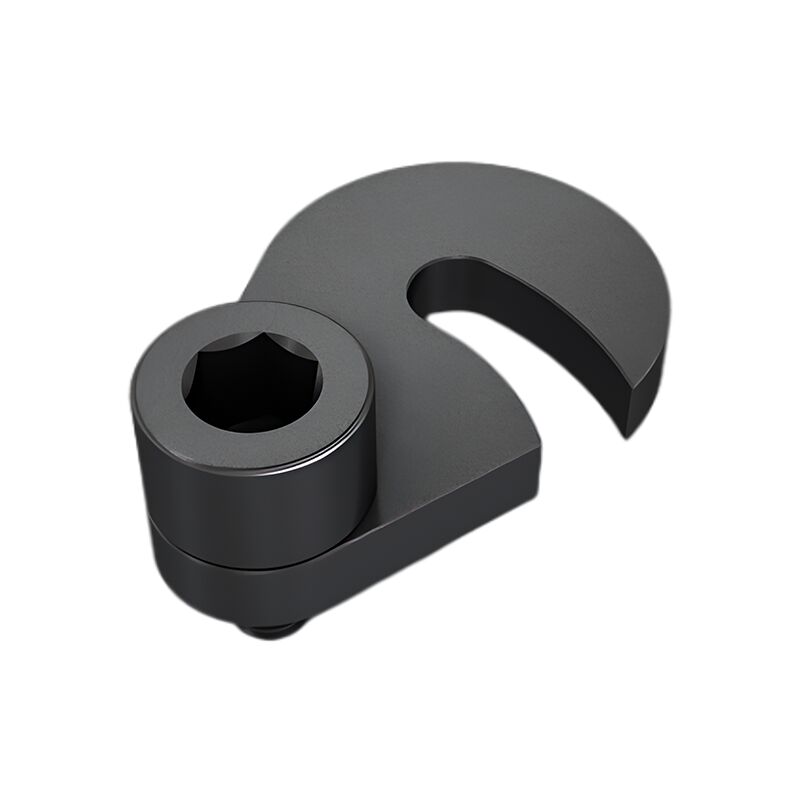

4140 High Precision SWING C WASHER For Repositionable Clamping Applications

Basic Information

Place of Origin:	Chongqing, China
Brand Name:	ADJIG
Model Number:	PT24-0632
Document:	Split Washer for Jigs-PT24.pdf

Minimum Order Quantity:	5
Price:	8 USD per item
Packaging Details:	Carton/wooden crate
Delivery Time:	7-10 days
Payment Terms:	T/T,L/C
Supply Ability:	Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 15-20 days.

Get Best Price

Chat Now

Detail Information

Material:	4140	Surface Treatment:	Black Oxide Coating
Inner Dia. D (mm):	11	Outer Dia. D (mm):	32
Thickness T (mm):	6	Heat Treatment:	HRC40°
Highlight:	4140 SWING C WASHER , SWING C WASHER High Precision , Fixture Clamping Parts

Product Description

High-Precision SWING 'C' WASHER for Repositionable Clamping Applications

Material: 4140(JIS) / CK45(DIN)

Heat treated: HRC 40°

Surface finish︰Black Oxide.

Application︰C washer that swings out of the way for clean loading. Can be reversed to swing into position either clockwise or counter-clockwise.

MODEL	A	B	C	D	E	F	G	H	J	KG
PT24-0632	11	32	24	16	8	6	M6	8	15	0.05
PT24-0840	13.5	40	27	20	10	8	M8	10	20	0.09
PT24-0850	18	50	33	20	10	8	M8	10	20	0.13

4140 High Precision SWING C WASHER For Repositionable Clamping Applications 0
