CNC Fixture Swivel Shoulder Clamping Screw for Accurate Positioning

Basic Information

Place of Origin:	Chongqing, China
Brand Name:	ADJIG
Model Number:	PT16C-610
Document:	Swivel Shoulder Screw-PT16.pdf

Minimum Order Quantity:	5
Price:	8 USD per item
Packaging Details:	Carton/wooden crate
Delivery Time:	7-10 days
Payment Terms:	L/C,T/T
Supply Ability:	Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 15-20 days.

Get Best Price

Chat Now

Detail Information

Highlight:

cnc fixture parts

cnc foot clamping fixture

swivel fixture parts

Product Description

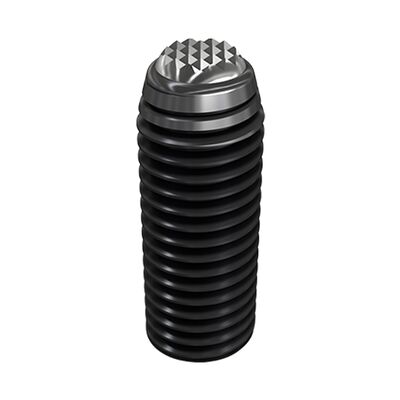

CNC Fixture Swivel Shoulder Clamping Screw for Accurate Positioning

SERRATED END

Material: Bolt: SCM435(JIS) / 34CrMo4(DIN)

Ball: SUJ2(JIS) / 100Cr6(DIN)

Heat treated: Bolt: HRC 28°~32°

Ball: HRC 62°

Surface finish: Black Oxide.

Model No	A	B	C	D	Weight(kg)
PT16C-610	10	M6	3	9	1.5
PT16C-615	13				2.4
PT16C-616	16				2.4
PT16C-620	20				3
PT16C-625	23				3.8
PT16C-812	11	M8	4	15	3.2
PT16C-816	16				4.1
PT16C-820	19				5.8
PT16C-825	25				7.3
PT16C-830	29				9
PT16C-1014	14	M10	5	20	5
PT16C-1015	15				6.7
PT16C-1020	20				8.7
PT16C-1025	25				11.2
PT16C-1030	30				13.7
PT16C-1035	35				16.2
PT16C-1040	40				18.7
PT16C-1218	20	M12	6	30	10
PT16C-1220	22				12.5
PT16C-1230	30				20
PT16C-1240	40				30
PT16C-1250	50				40
PT16C-1625	24	M16	8	60	28
PT16C-1635	34				40
PT16C-1645	44				45
PT16C-1655	54				55
PT16C-1665	64				65
PT16C-2030	30	M20	10	90	54
PT16C-2040	40				74
PT16C-2050	50				94
PT16C-2060	60				120
PT16C-2090	90				170
PT16C-2435	35	M24	12	120	90
PT16C-2450	50				130
PT16C-2480	80				235
