Adjustable Swivel Shoulder Clamping Screw for CNC Fixture Setup

Basic Information

Place of Origin:	Chongqing, China
Brand Name:	ADJIG
Model Number:	PT17B-0615
Document:	SWIVEL SHOULDER SCREW-PT17.pdf

Minimum Order Quantity:	5
Price:	8 USD per item
Packaging Details:	Carton/wooden crate
Delivery Time:	7-10 days
Payment Terms:	L/C,T/T
Supply Ability:	Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 15-20 days.

Get Best Price

Chat Now

Detail Information

Highlight:

adjustable fixture parts

adjustable foot clamping fixture

swivel fixture parts

Product Description

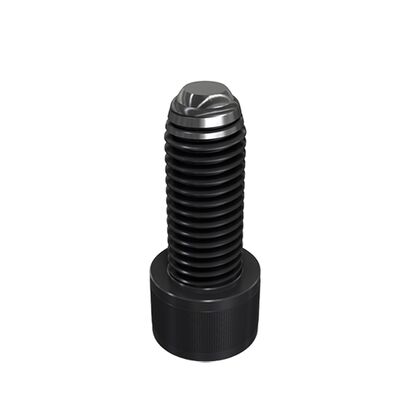

Adjustable Swivel Shoulder Clamping Screw for CNC Fixture Setup

FLAT END

Material: Bolt: SCM435(JIS) / 34CrMo4(DIN)

Ball: SUJ2(JIS) / 100Cr6(DIN)

Heat treated: Bolt: HRC 28°~32°

Ball: HRC 62°

Surface finish: Black Oxide.

Model No	A	B	C	D	E	Max(Kn)	Weight(kg)
PT17B-0615	14	10	5	6	M6	9	5.3
PT17B-0625	23						7.4
PT17B-0635	33						9.5
PT17B-0820	18	13	6	8	M8	15	13.5
PT17B-0830	28						20
PT17B-0840	38						24
PT17B-0850	50						30
PT17B-1025	24	16	8	10	M10	20	26
PT17B-1040	39						34
PT17B-1060	59						46
PT17B-1230	30	18	10	12	M12	30	40
PT17B-1245	45						50
PT17B-1265	65						70
PT17B-1280	80						83
PT17B-1640	39	24	14	16	M16	30	90
PT17B-1650	49						110
PT17B-1665	64						130
PT17B-1690	89						170
PT17B-20050	50	30	17	20	M20	60	185.1
PT17B-20080	80						256.4
PT17B-20100	100						301.2
PT17B-24060	60	36	19	24	M24	90	324.8
PT17B-24090	90						283.5
PT17B-24120	120						351
