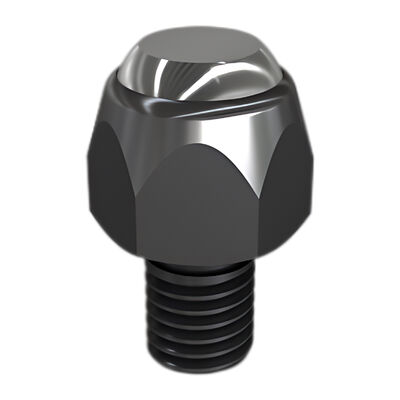

Ball End Thrust Screw Head Flattened Serrated Smooth Ball End Bolt PT01

Basic Information

Place of Origin:	Chongqing, China
Brand Name:	ADJIG
Model Number:	PT01
Document:	PT01-PT02.pdf

Minimum Order Quantity:	5
Price:	10-13 USD per item
Packaging Details:	Carton/wooden crate
Delivery Time:	7-10 days
Payment Terms:	T/T,L/C
Supply Ability:	Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.

Get Best Price

Chat Now

Detail Information

Features:	Even Clamping Pressure On Sloped Or Uneven Surfaces	Body Material And Heat Treatment:	S45C ；HRC28°~32°
Steel Ball Material And Heat Treatment:	SUJ12 ；HRC62°	Material:	Steel
Size:	Various Sizes Available	Application:	Clamping And Support
Adjustability:	Adjustable For Different Clamp Sizes	Compatibility:	Fits Most Standard Clamps
Installation Method:	Screw-in	Type:	Fixture Standard Parts
Highlight:	serrated fixture parts , serrated foot clamping fixture , smooth fixture parts

Product Description

Ball-end Thrust Screw With Head Flattened Serrated Smooth Ball End Bolt PT01

Material: S45C body, steel ball SUJ2.

Heat treatment:body HRC 28 °~32 °, steel ball HRC 62 °.

Surface treatment: Blackening treatment.

Characteristic:Even clamping pressure on sloped or uneven surfaces.

brief introduction:Smooth Ball End Bolt PT01 Precision swivel ball that can be used either as a contact bolt or as a rest pad.

As contact bolts, these swivel-ball units are ideal for evenly distributing clamping pressure on sloped or uneven surfaces.

Model	A	B	C	D	E	KG
PT01-0610	21	10	M6×1	6	10	0.012
PT01-0814	25	12	M8×1.25	8	14	0.015
PT01-1017	30	16	M10×1.5	10	17	0.025
PT01-1222	35	22	M12×1.75	12	22	0.07
PT01-1627	42	26	M16×2	14	27	0.14
PT01-2036	55	27	M20×2.5	14	36	0.28
PT01-2436	65	32	M24×2	18	36	0.56
PT01-3046	80	35	M30×2	21	46	0.88

Ball End Thrust Screw Head Flattened Serrated Smooth Ball End Bolt PT01 0
